Mitsubishi Projector

Mitsubishi Projectors

Leading DLP Projector Range

A leader in the Australian projector market, Mitsubishi Electric features one of the largest ranges of projectors available from any supplier. With a choice between LCD or DLP® technology, Mitsubishi Electric has a projector to cater for any use from Education, Government and Corporate to high quality Home Theatre.

DLP® is the projector of choice for digital signage installations where the projector is on for long periods of time.

Mitsubishi Electric projectors come in a wide range of categories. From standard and premium projectors, which are ideal for the classroom, boardroom, or sales presentations on the move, to installation models for use in large auditoriums, multipurpose halls or churches. Not matter what type of projector you need, you can be assured that your model will include a range of great features. Some of the more common features found in our projectors include:
High Brightness and Contrast
Instant Shutdown
Security Options
Filter Free Design
Long Lamp Life
BrilliantColourTM Technology

With all these features and more, there's sure to be a Mitsubishi Electric projector to suit any of your needs.

  • XD600U Specifications
  • XD3200U Specifications
  • XD3500U Specifications
  • Gallery

XD600U Specifications

Model XD600U
Display technology 0.7" 1-chip DMD, 12 deg. LVDS, DDP2230
Resolution 1024 x 768 (Total 786,432 pixels)
Brightness (Maximum) 4500 ANSI lumens
Contrast 2000:1
Picture Size 40 ~ 300 inch (100" = 3.3m)
Source lamp* 280W / 3,000 hours (Normal mode)
230W / 5,000 hours (Low mode)
Zoom/Focus Manual Focus and Zoom Foxu Lens (Zoom Ratio 1.5:1) with Zoom Trigger
Computer compatibility Resolution: 640 x 400 (Expand) - 1024 x 768 (Real) - 1600 x 1200 (Compressed); Sync on Green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i / p (525i / p), 576i / p (625i / p), 720p (750p 50 / 60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), (1080i(1250i 50Hz) is not available)
PC input terminals Mini D-sub 15pin x 2, 5 BNC x 1, HDMI x 1; Audio: stereo mini jack (ø3.5mm) x 2
Video input terminals Composite RCA x 1; S-VIDEO x 1; Audio: Stereo RCA x 1
Output terminals RGB : Mini D-sub 15pin x 1, Audio: Stereo Mini Jack (Ø 3.5mm) x 1
Communication terminals LAN (RJ-45) x 1, RS-232C: D-sub 9pin x 1
Audio Speaker 10W Mono
Power consumption 390W, less than 1W in Power Standby mode (3W with network connection)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 29 dB(A) (Lamp low mode)
Dimensions (W x H x D) 345 x 129 x 270 mm (excluding all protrusions)
Weight 3.6 kg
Optional lamp VLT-XD600LP
Included accessories AC Power Cable, VGA Cable, Remote Control (with battery), Quick Start Card, User Manual, Safety Manual, Lens Cap, Lamp Replacement Tool, Soft Carry Case

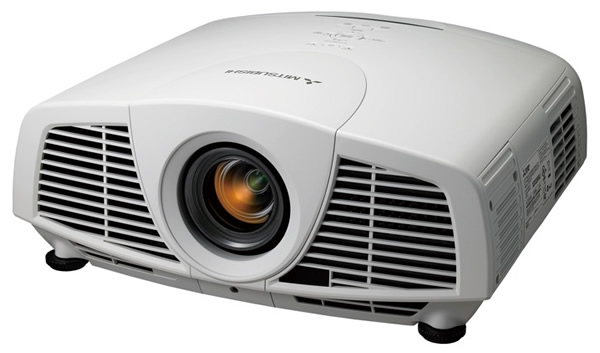

XD3200U Specifications

Model XD3200U
Display technology 0.7" 1-chip DMD, 12 deg. LVDS, DarkChip3™ with DDP3020
Resolution 1024 x 768 (Total 786,432 pixels)
Brightness (Maximum) 4500 ANSI lumens
Contrast 2500:1
Picture Size 40 ~ 300 inch (100" = 3.8m)
Source lamp* 330W / 2,000 hours (Normal mode)
264 W / 4,000 hours (Low mode)
Zoom/Focus Motorised Zoom and Focus Lens (Zoom Ratio 1.35:1)
Computer compatibility Resolution: 640 x 400 (Expand) - 1024 x 768 (Real) - 1600 x 1200 (Compressed); Sync on Green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i / p (525i / p), 576i / p (625i / p), 720p (750p 50 / 60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), (1080i(1250i 50Hz) is not available), SCART (RGB + 1V sync, only Mini D-Sub 15pin Terminal)
PC input terminals Mini D-sub 15pin x 1, 5 BNC x 1, DVI-D (with HDCP) x 1; Audio: stereo mini jack (ø3.5mm) x 3
Video input terminals RCA x 1; BNC x 1; S-VIDEO x 2(4-pin or BNC); HDMI(v1.2) x 1 Audio: RCA (L,R) x 2
Output terminals RGB : Mini D-sub 15pin x 1, DC Out: 5V; Audio: Stereo Mini Jack (Ø 3.5mm) x 1
Communication terminals LAN (RJ-45) x 1, RS-232C: D-sub 9pin x 1, USB x 1 (Mouse control), Wired remote in/out
Audio Speaker 10W Mono
Power consumption 430W/4.5A
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 26 dB(A) (Lamp low mode)
Dimensions (W x H x D) 450 x 187 x 373 mm (excluding all protrusions)
Weight 10.3 kg
Optional lamp VLT-XD3200LP
Lens: OL-XD2000SZ, OL-XD2000LZ, OL-XD2000TZ, OL-XD2000FR
Included accessories AC Power Cable, RGB Cable, RS-232C Cable, Remote Cable, Terminal Cover, Remote Control (with battery), User Manual CD, Safety Manual

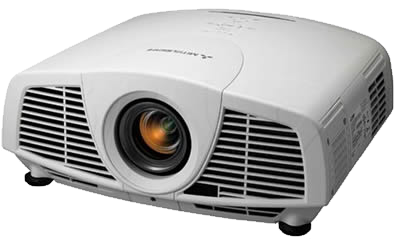

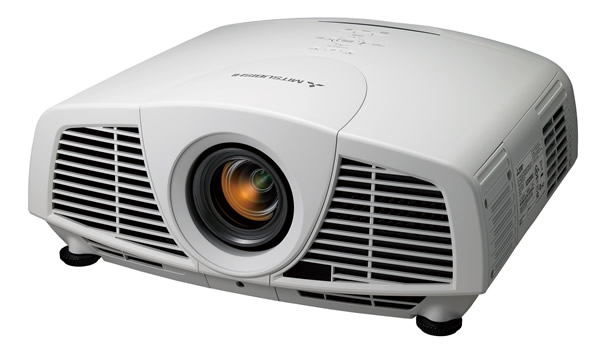

XD3500U Specifications

Model XD3500U
Display technology 0.7" 1-chip DMD, 12 deg. LVDS, DarkChip3™ with DDP3020
Resolution 1024 x 768 (Total 786,432 pixels)
Brightness (Maximum) 5000 ANSI lumens
Contrast 2500:1
Picture Size 40 ~ 300 inch (100" = 3.8m)
Source lamp* 330W / 2,000 hours (Normal mode)
264 W / 4,000 hours (Low mode)
Zoom/Focus Powered Focus & Zoom (Zoom Ratio 1.35:1)
Computer compatibility Resolution: 640 x 400 (Expand) - 1024 x 768 (Real) - 1600 x 1200 (Compressed); Sync on Green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i / p (525i / p), 576i / p (625i / p), 720p (750p 50 / 60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), (1080i(1250i 50Hz) is not available), SCART (RGB + 1V sync, only Mini D-Sub 15pin Terminal)
PC input terminals Mini D-sub 15pin x 1, 5 BNC x 1, DVI-D (with HDCP) x 1; Audio: stereo mini jack (ø3.5mm) x 3
Video input terminals RCA x 1; BNC x 1; S-VIDEO x 2(4-pin or BNC); HDMI(v1.2) x 1 Audio: RCA (L,R) x 2
Output terminals RGB : Mini D-sub 15pin x 1, DC Out: 5V; Audio: Stereo Mini Jack (Ø 3.5mm) x 1
Communication terminals LAN (RJ-45) x 1, RS-232C: D-sub 9pin x 1, USB x 1 (Mouse control), Wired remote in/out
Audio Speaker 10W Mono
Power consumption 430W/4.5A
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 26 dB(A) (Lamp low mode)
Dimensions (W x H x D) 450 x 194 x 373 mm (excluding all protrusions)
Weight 10.3 kg
Optional lamp VLT-XD3200LP
Lens: OL-XD2000SZ, OL-XD2000LZ, OL-XD2000TZ, OL-XD2000FR
Included accessories AC Power Cable, RGB Cable, RS-232C Cable, Remote Cable, Terminal Cover, Remote Control (with battery), User Manual CD, Safety Manual

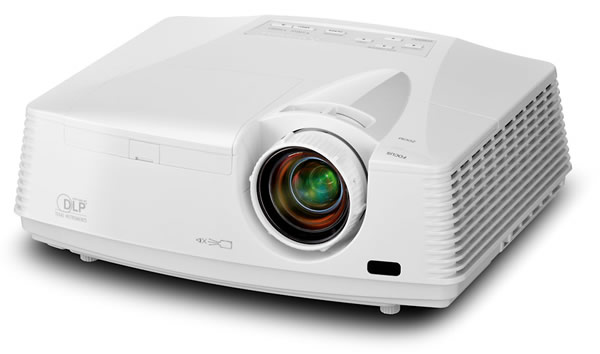

Mitsubishi FD630U Projector Mitsubishi XD3200U Projector Mitsubishi XD3500U Projector
